SA Dasher/Macrodata Refinement

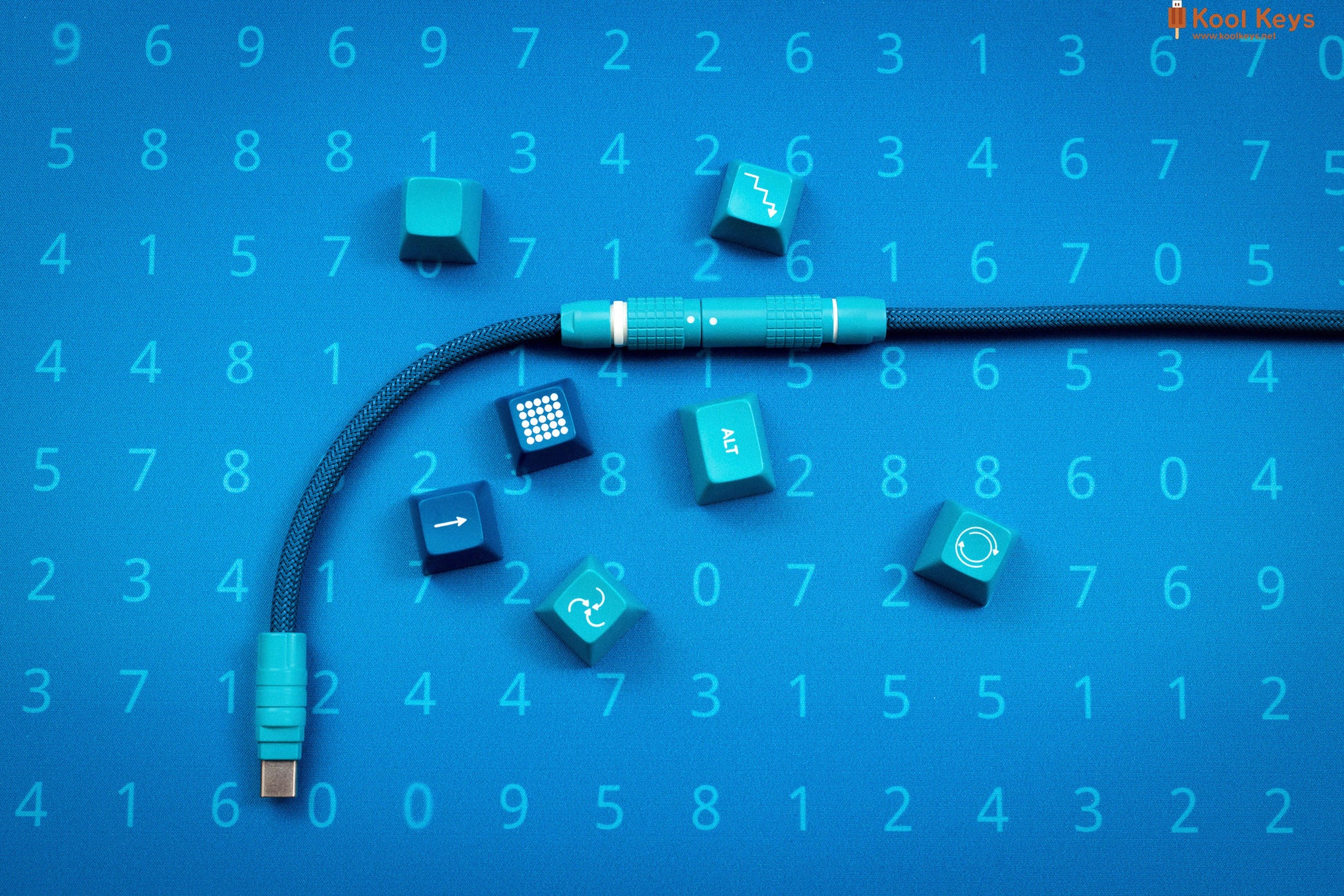

SA Dasher/Macrodate Refinement Custom Mechanical Keyboard Cable

Designed to match SA Dasher or Macrodate Refinement, using our custom formulated Cerakote.

Two custom Cerakote colours and custom dyed MDPC-X XTC

Type: USB2.0. Type C keyboard connection. USB Type A PC connection.  (Type C to Type C PD 3.0 100watt charging version available on request as a custom order - Message us to order)

Device Side: 4 inch (11.5cm) straight, excluding connectors.

Host Side: 5ft (152cm)

Cable: 26AWG LSZH 4 core shielded. USB2.0 compliant.

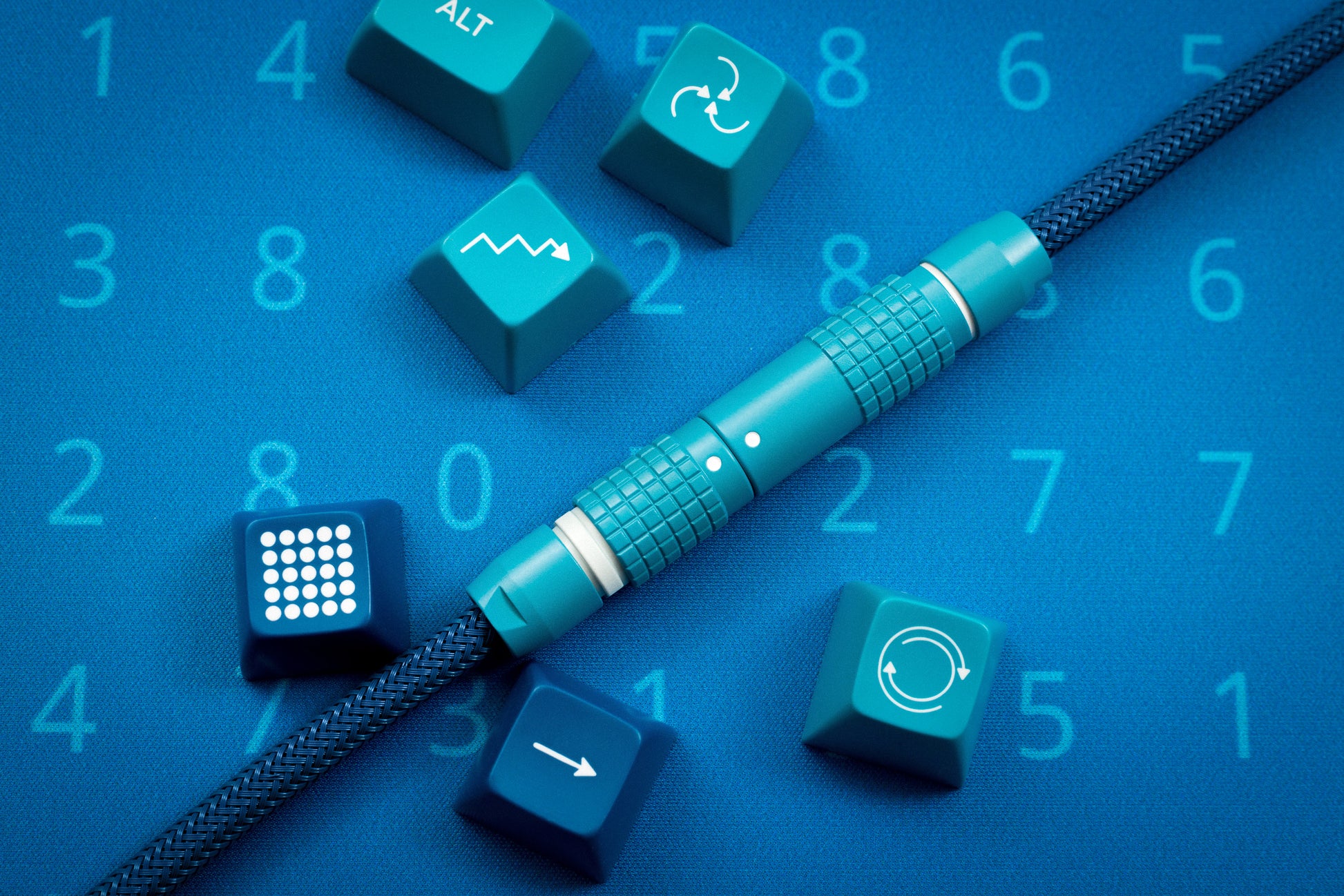

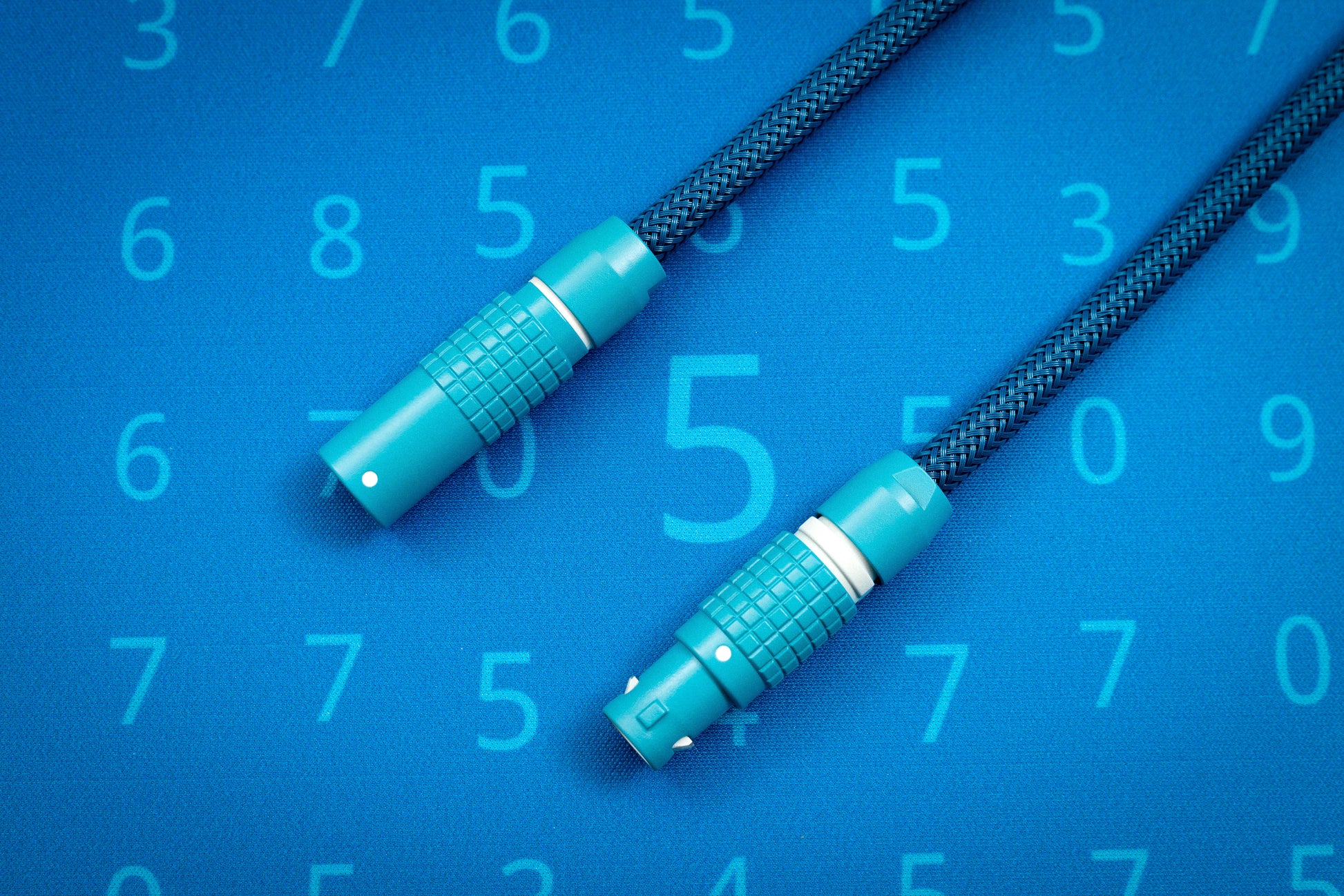

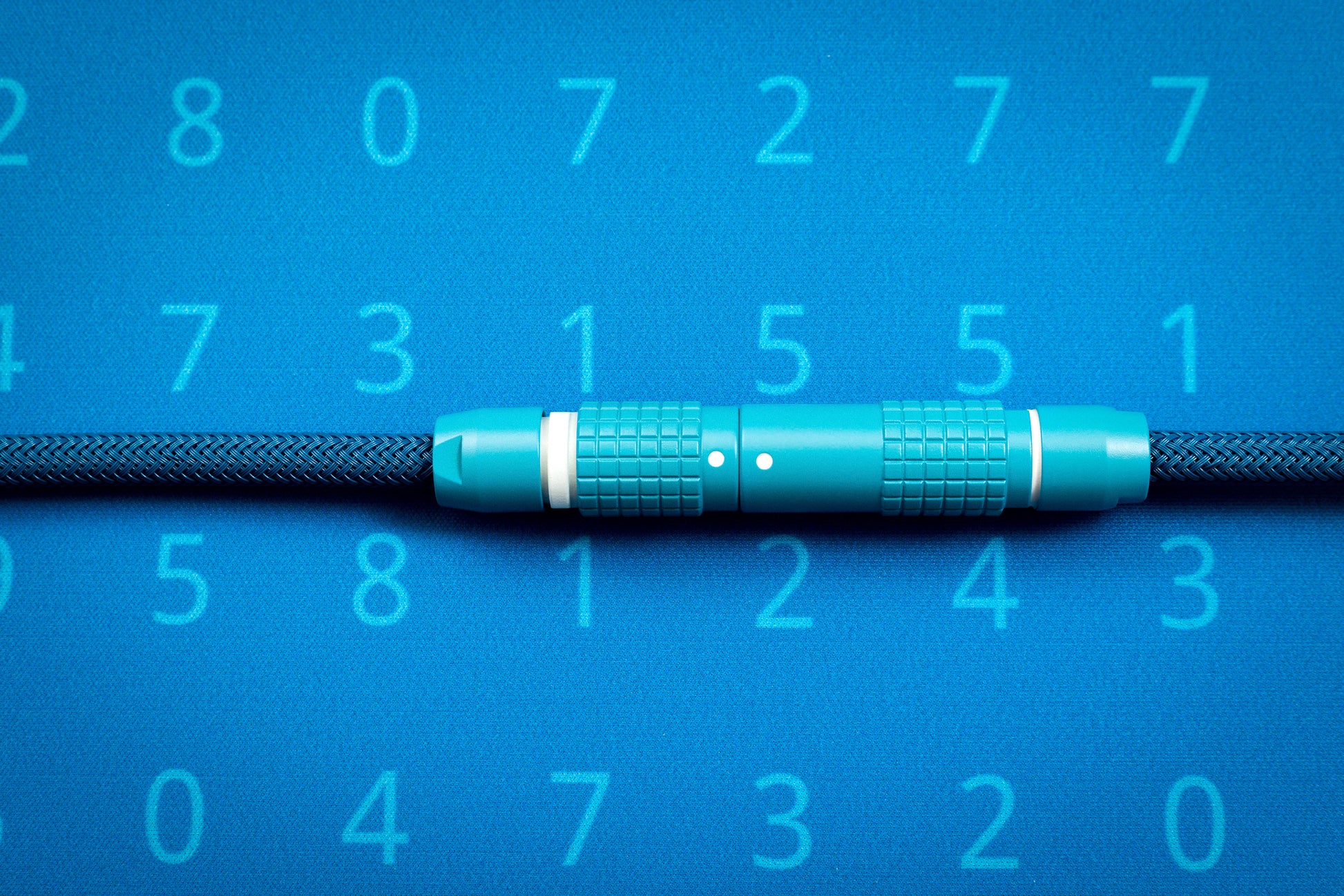

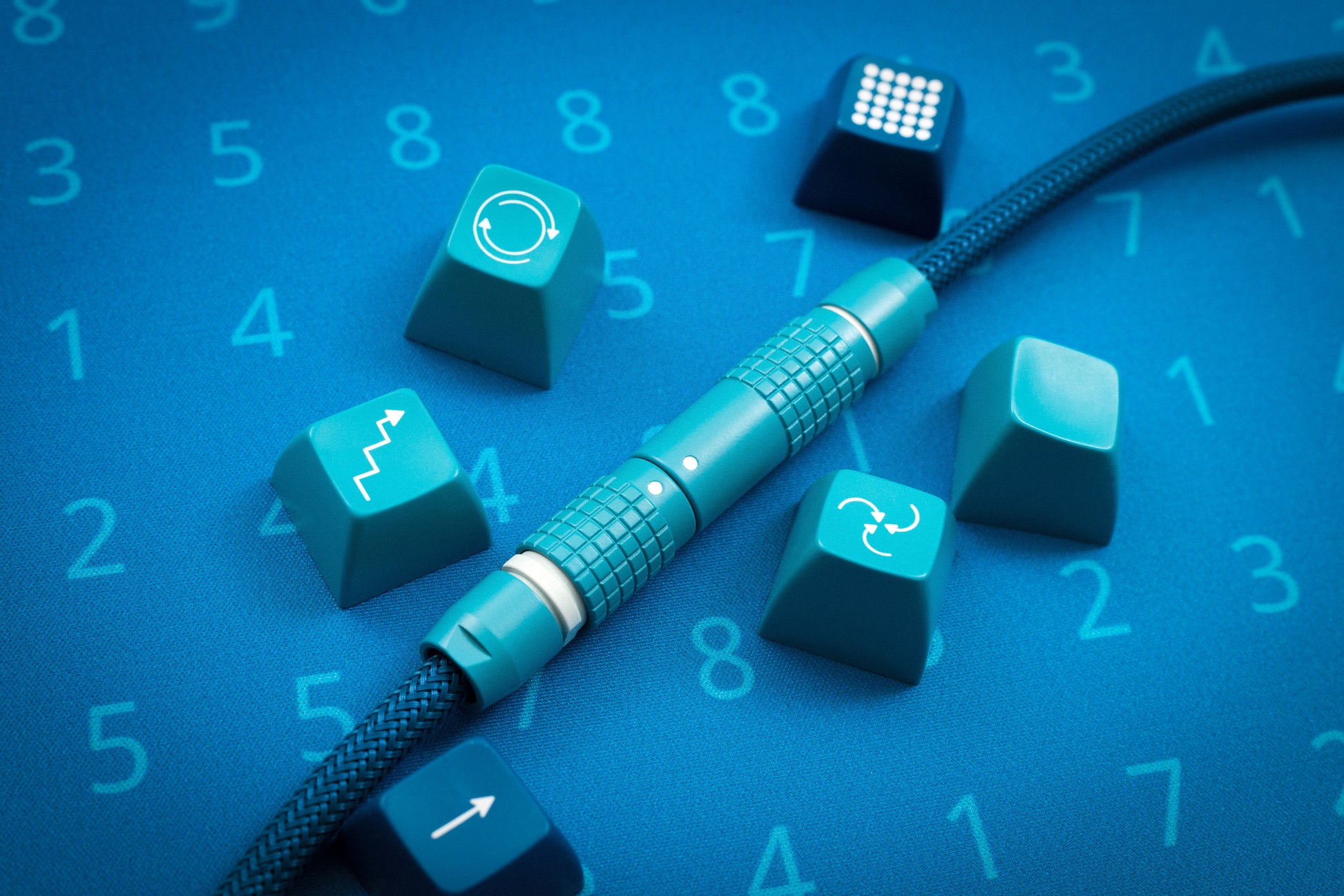

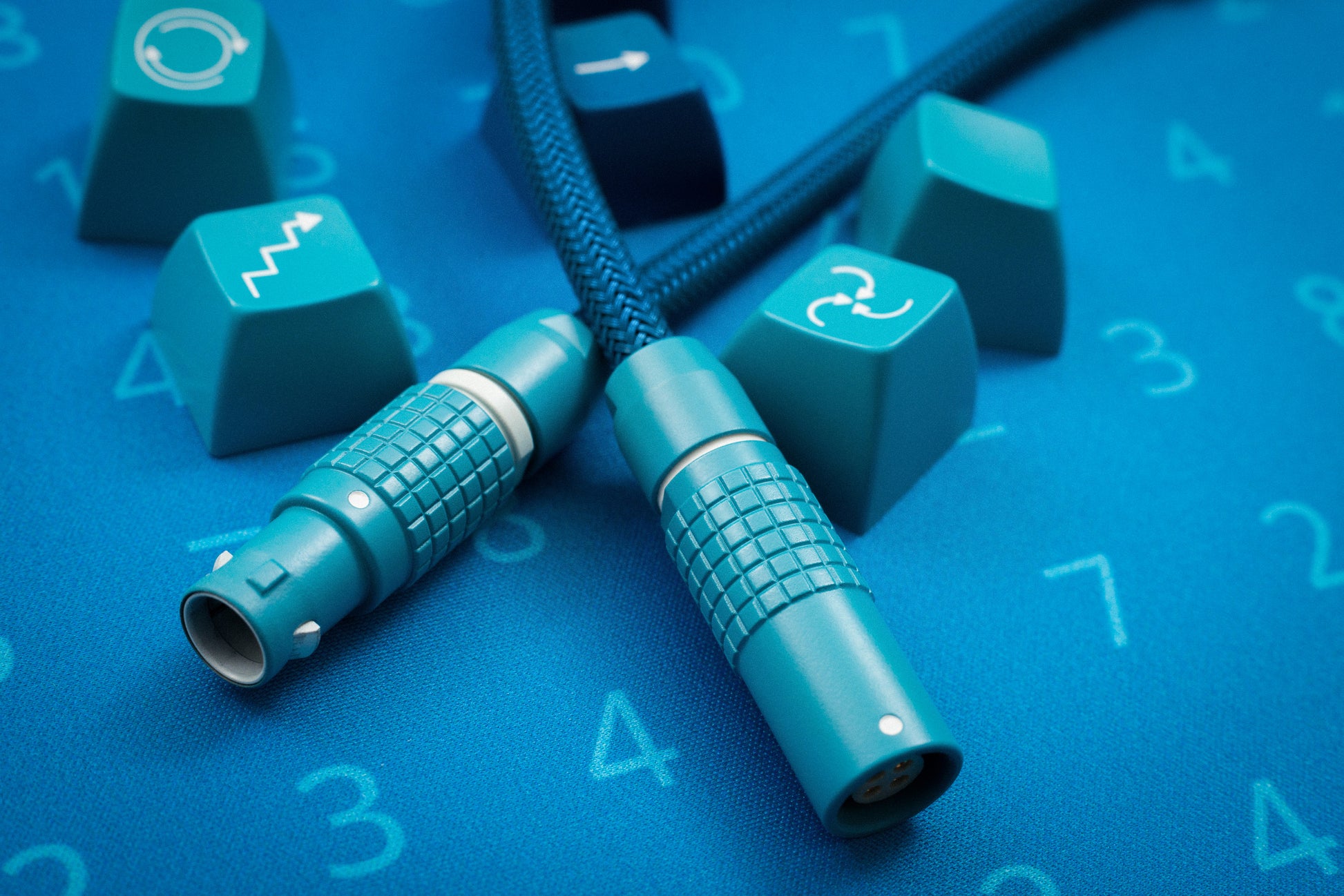

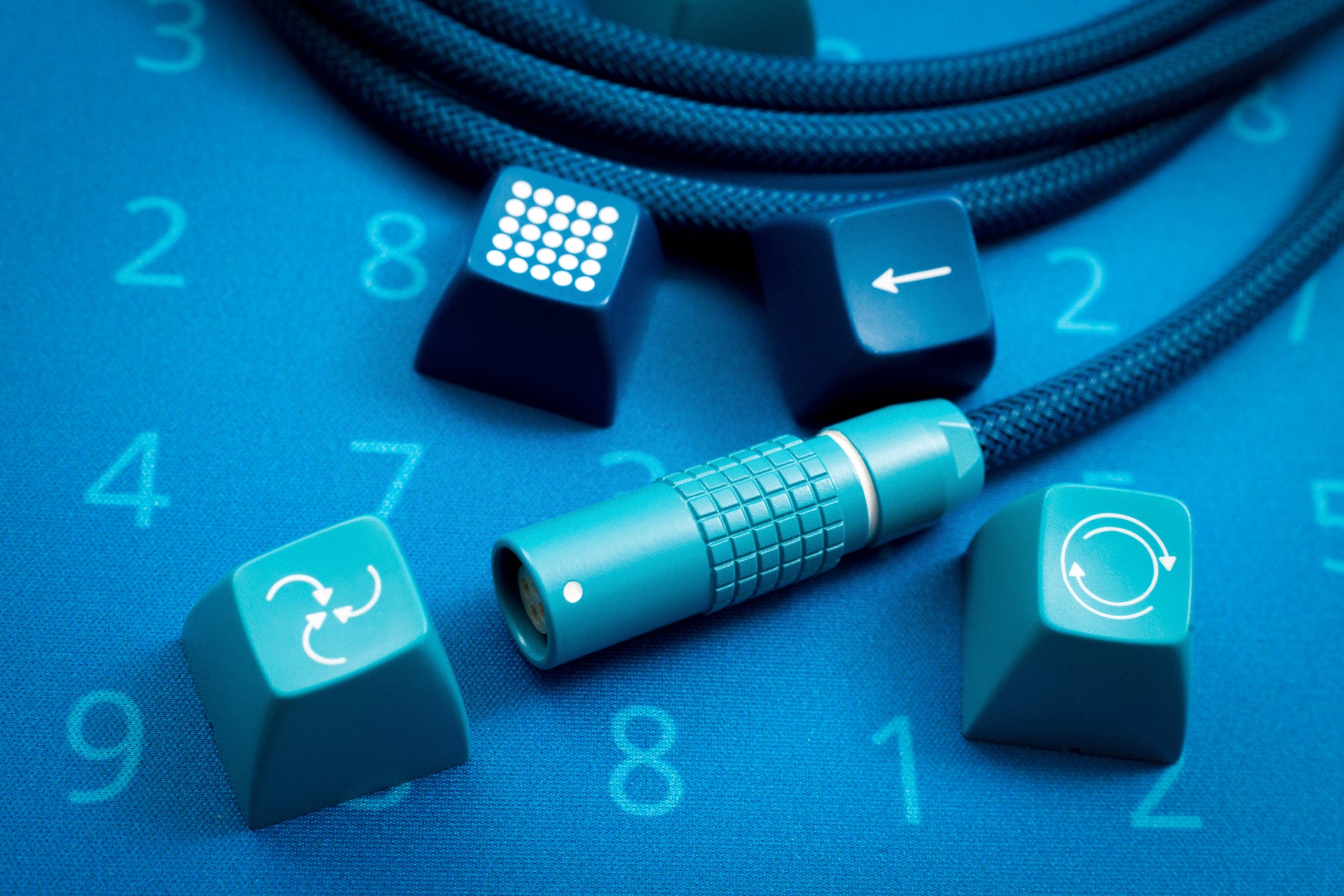

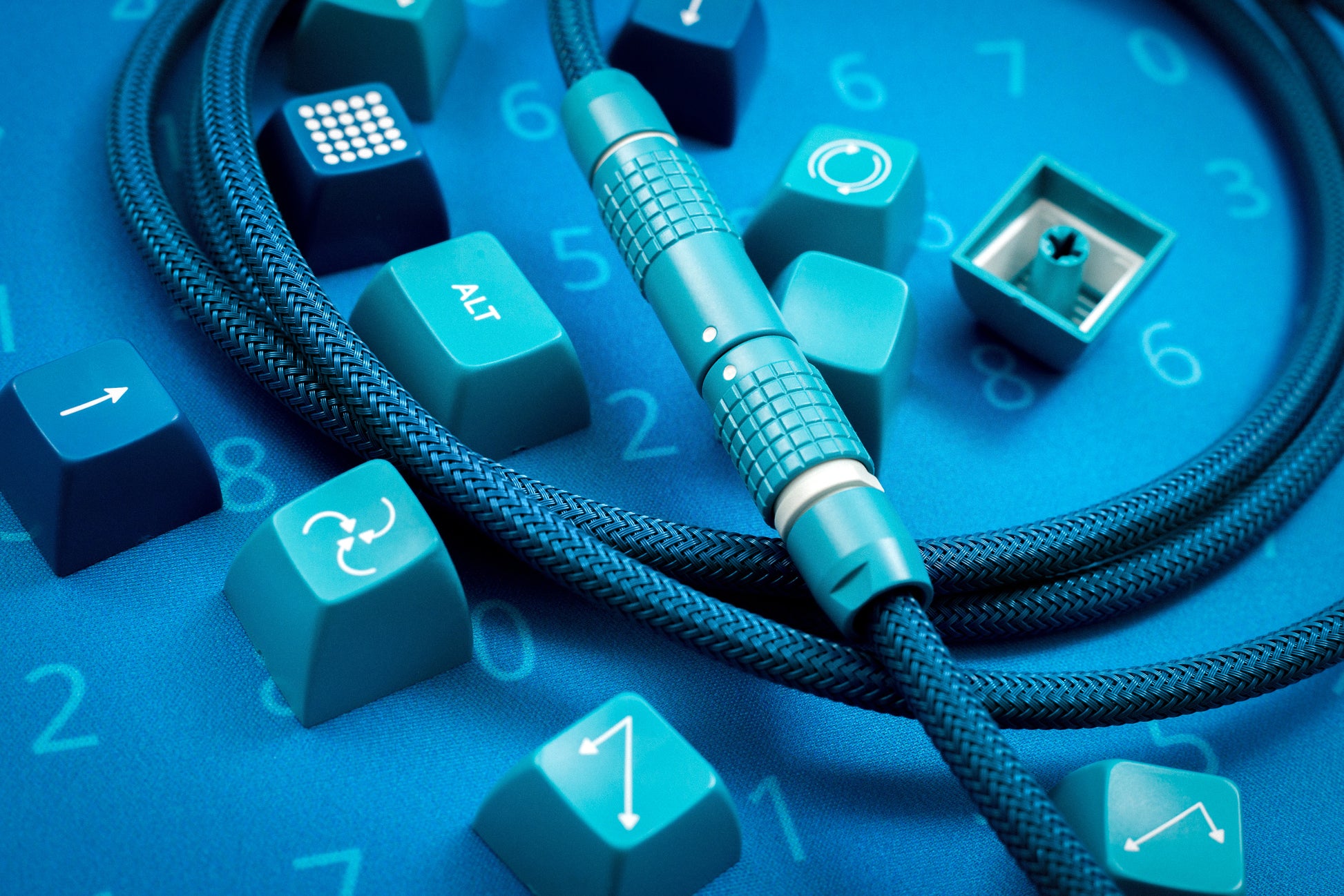

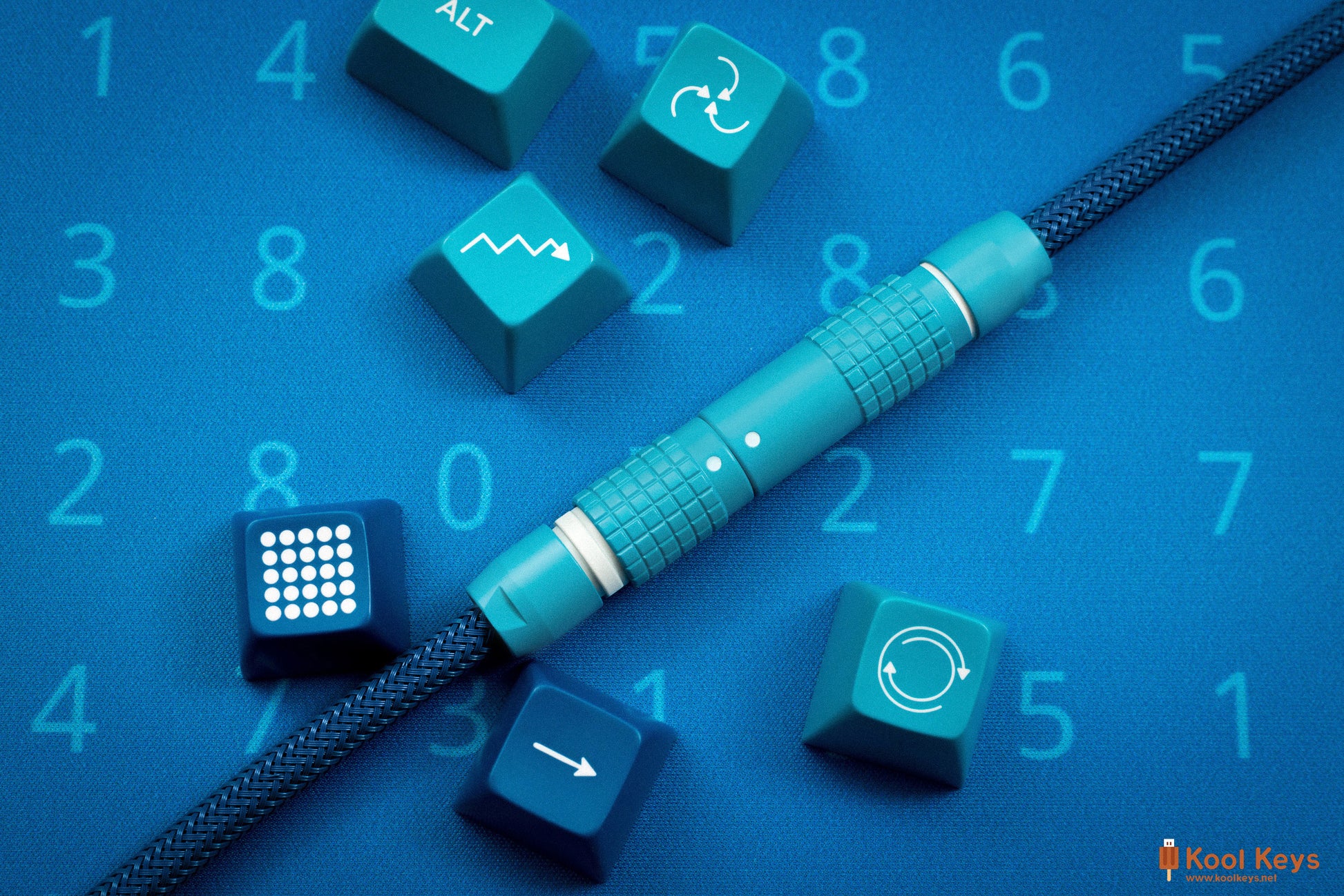

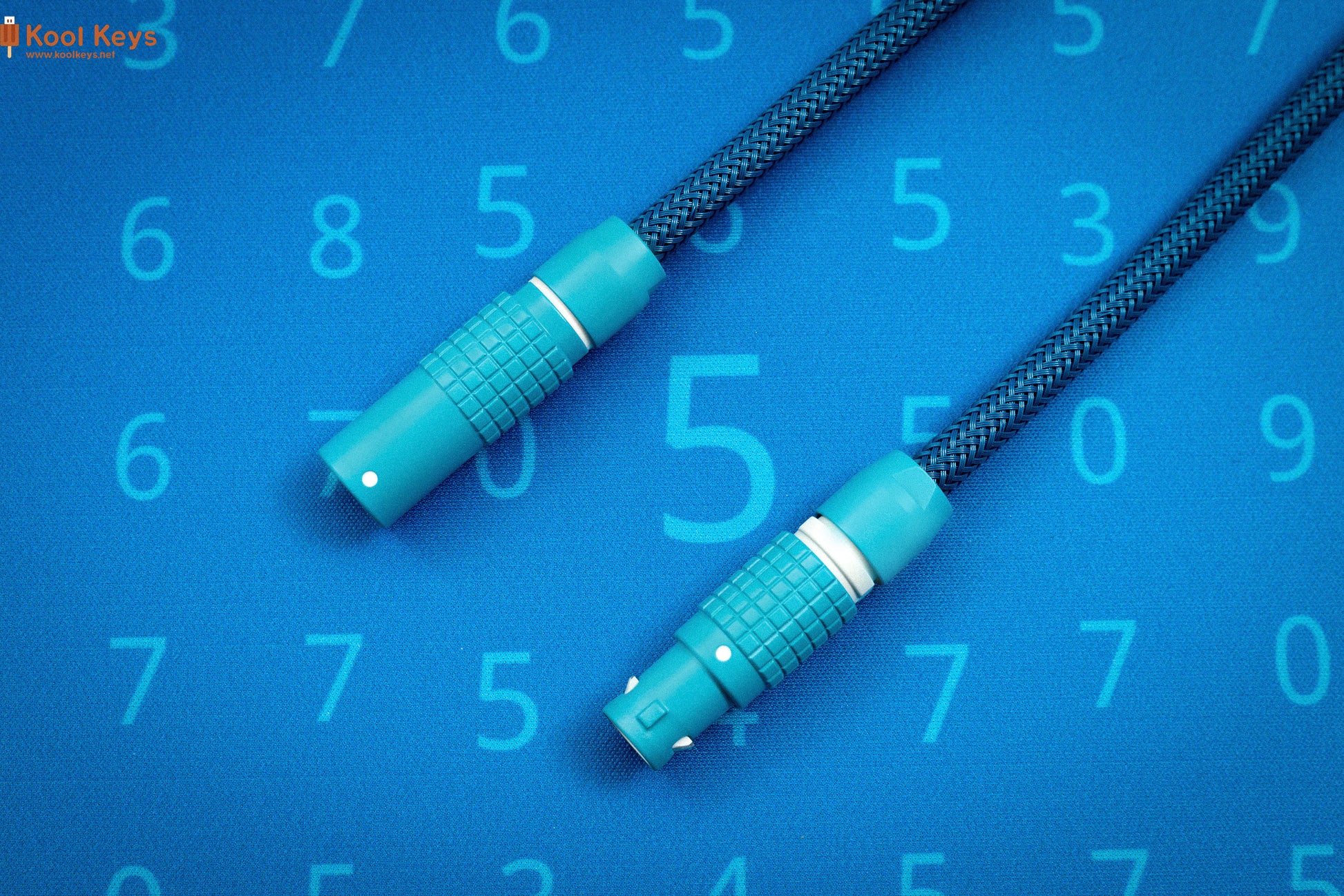

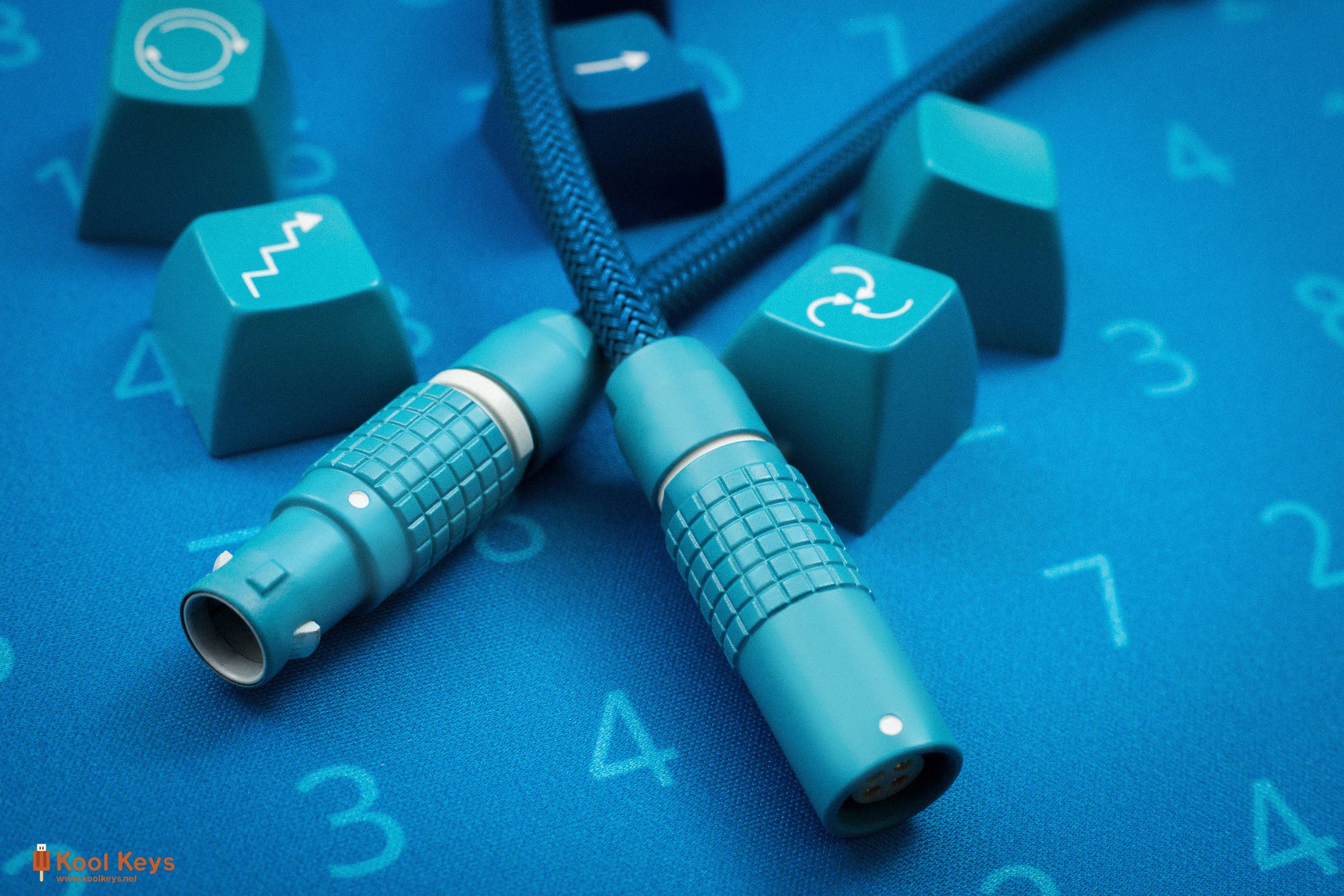

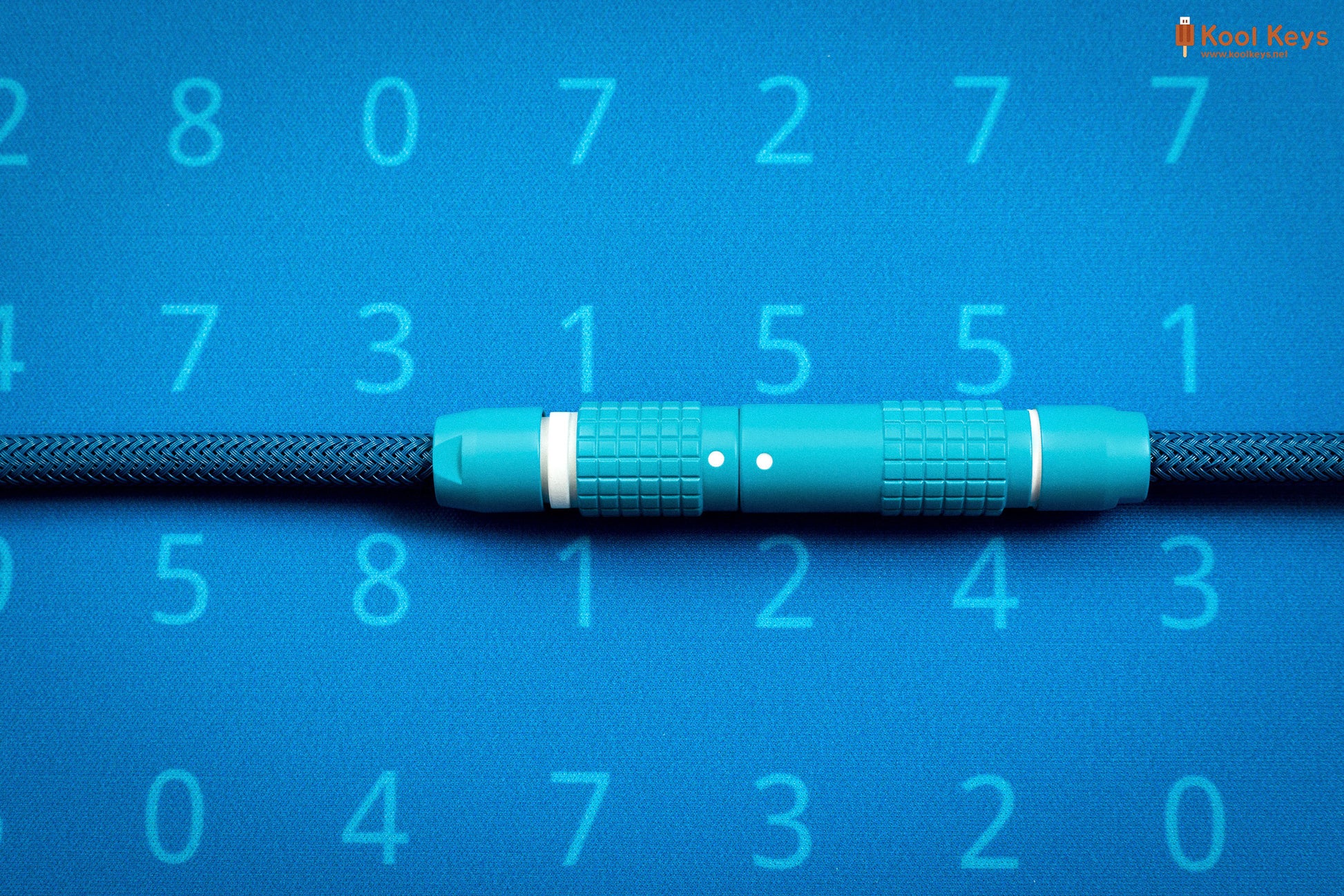

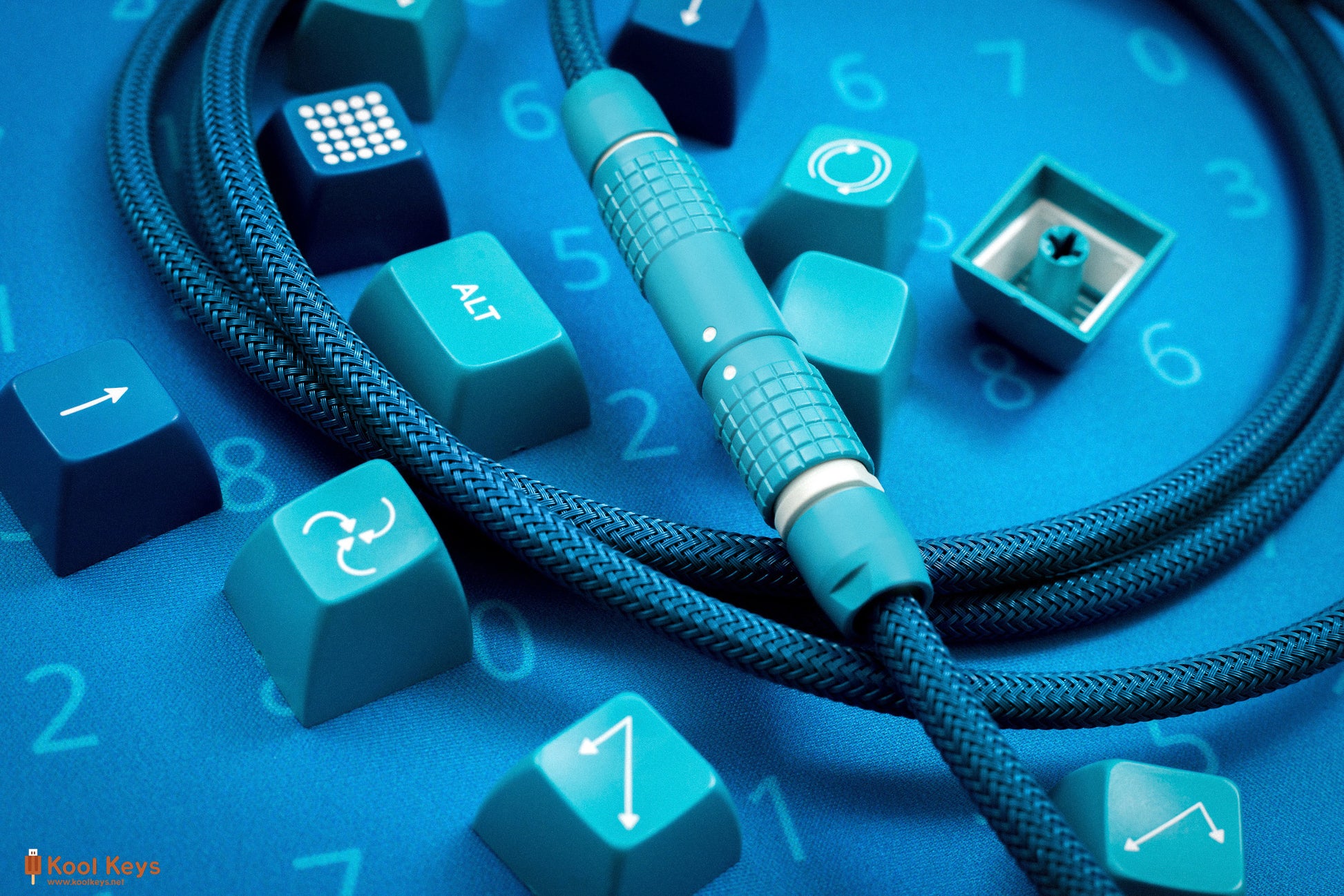

Quick Connect: 1B Lemo style finished in two custom formulated Cerakote colours to match SA Dasher accent keys with latch sleeve accent matching legend colour.  All soldered connections are insulated with injected silicon.

USB:

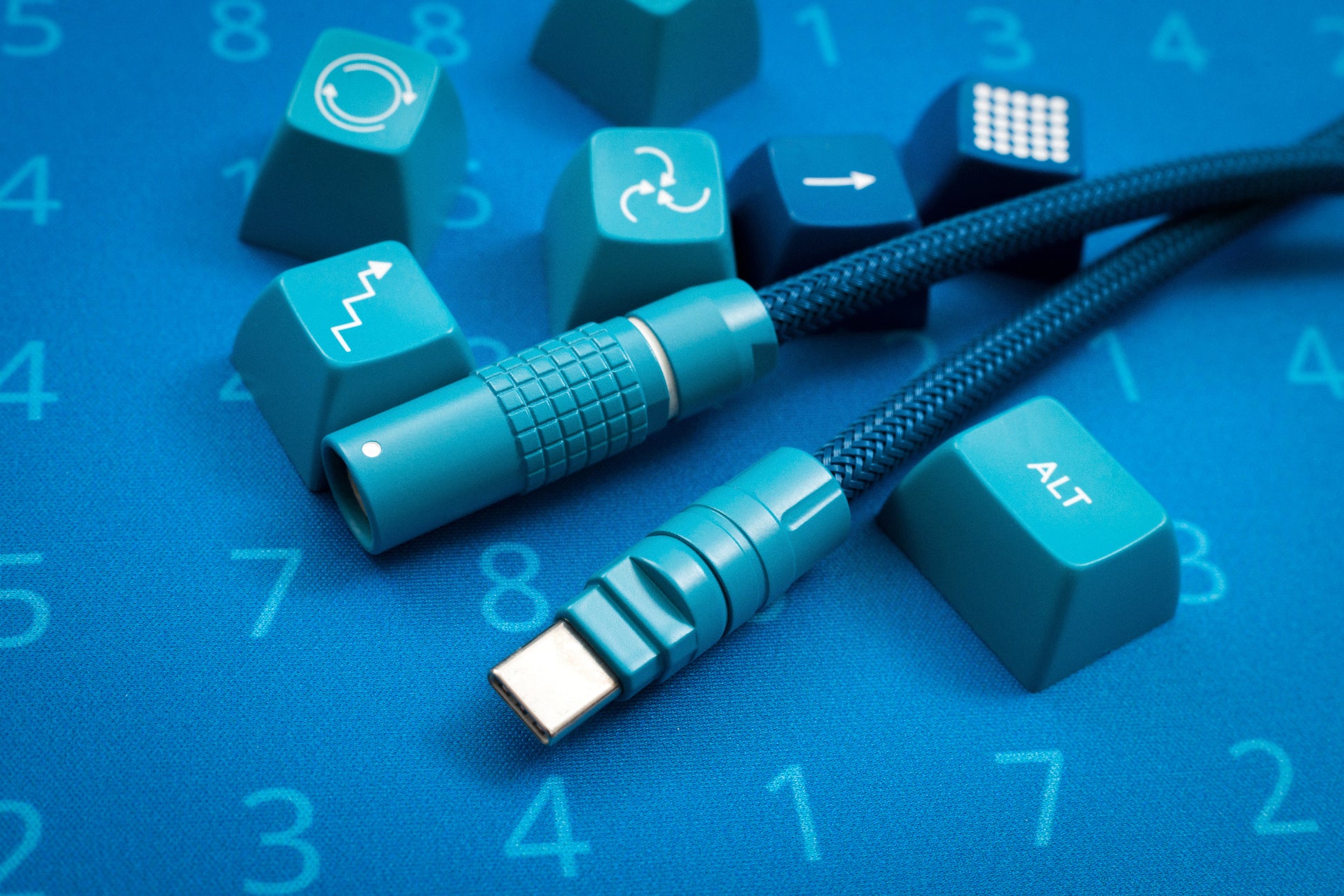

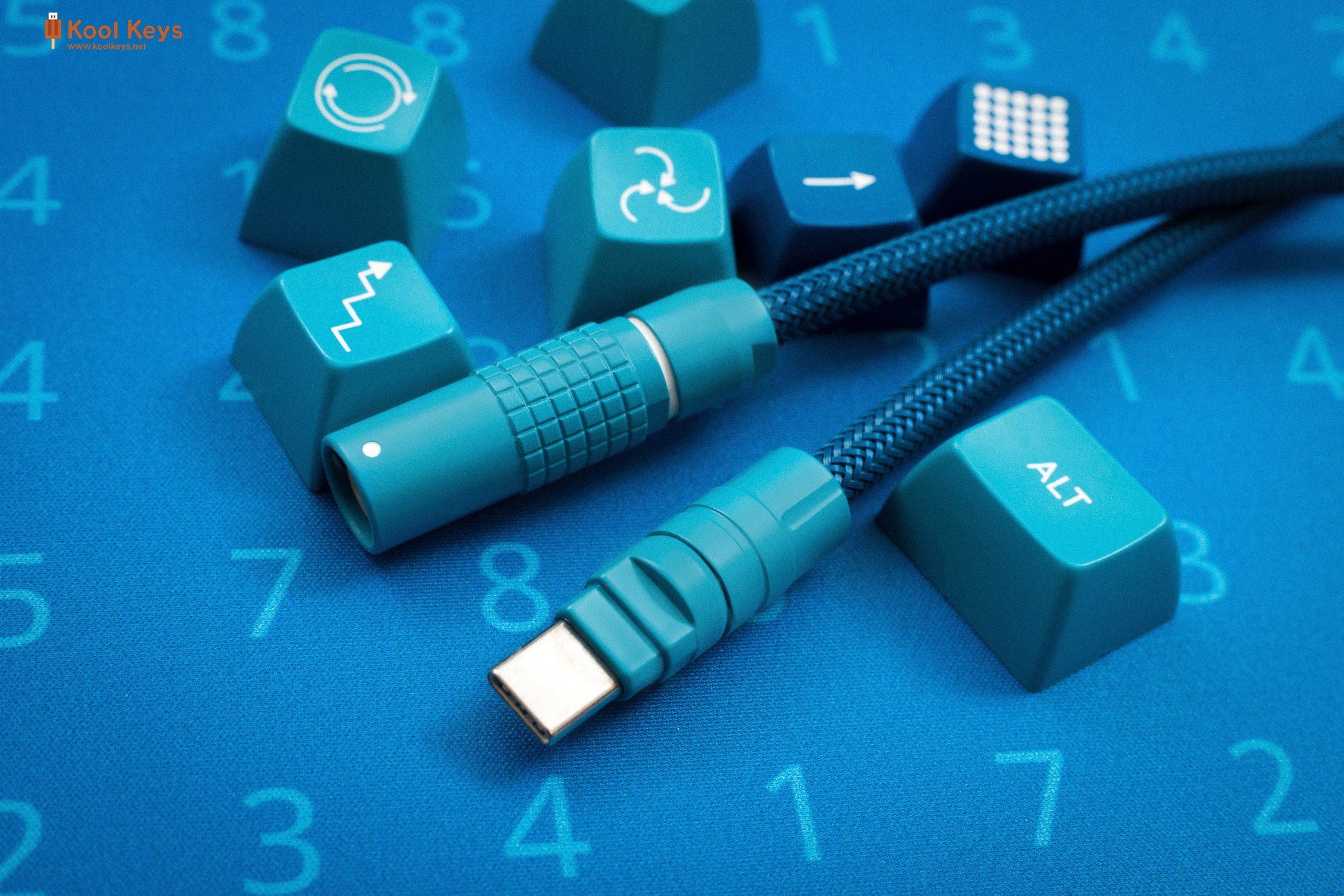

Device Side - CNC machined copper type C finished in custom formulated Cerakote to match SA Dasher accent keys. Epoxy resin filled to form a solid state connector.

Host Side - Nickel plated type A shell and genuine Techflex Polyolefin 3:1 shrink in white. Silicon injected.

Sleeving:  Custom dyed MDPC-X XTC to match SA Dasher alpha keys. Double sleeved.

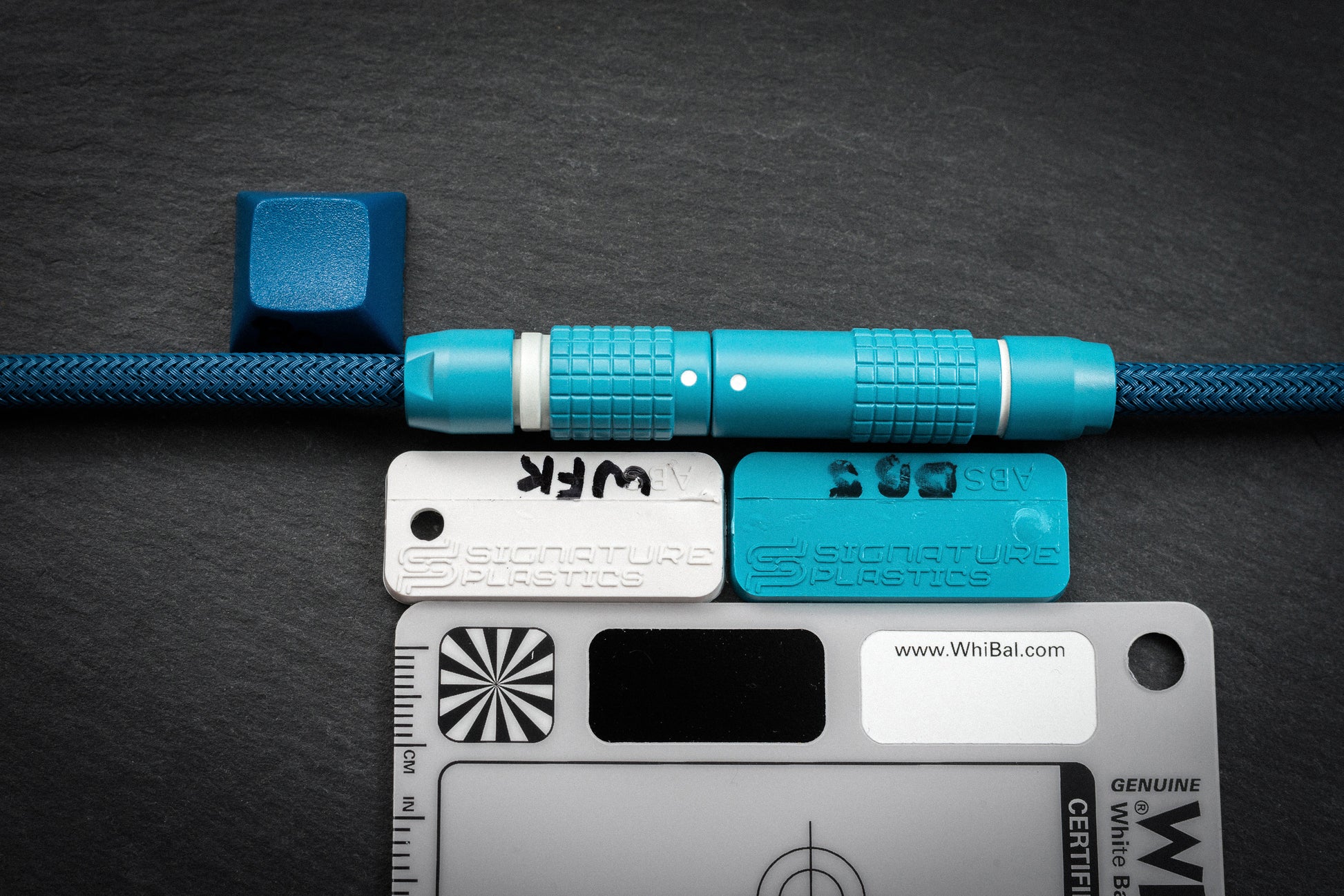

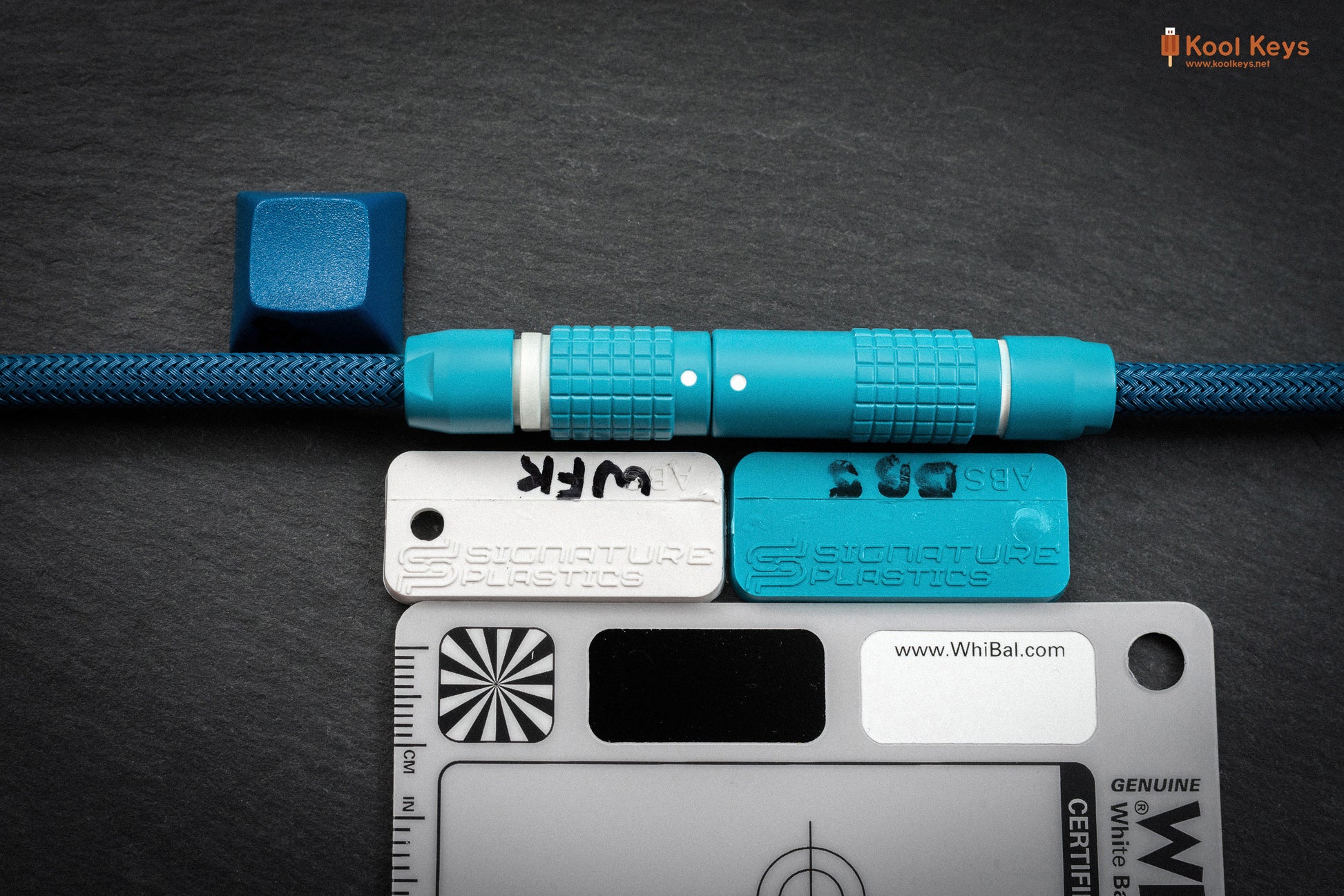

Notes on colour fidelity: This product is colour matched to genuine SA Dasher or Macrodate Refinement, and may not be an exact match to cloned/replica copies. Not tested against MT3 Dasher, so can't guarantee a match to those keycaps.  Colour matching done in direct sunlight. Use of discontinuous spectrum light sources such as fluorescent or low CRI LEDs should not be used to evaluate colour fidelity as metamerism becomes a factor. Images shot on Nikon D800E using studio flash, and white balanced at raw stage using a calibrated grey card.

Certain ABS plastics are prone to fade or colour change with age and UV exposure, and also resin mixing tolerances are not perfect for any manufacturer from batch to batch, so one round of a keycap set may be slightly different from the next. Being different materials than the keycaps, Cerakote and sleeving may also appear different in certain lighting due to differences in surface texture.  We have done all we can within the limits of practicality to ensure the best colour match, but minute differences may sometimes be beyond our control.

 Note: Design style of CNC Type C connectors may change without notice due to supply changes.
